Manifold Nozzles – Standard


storefront





Click to enlarge

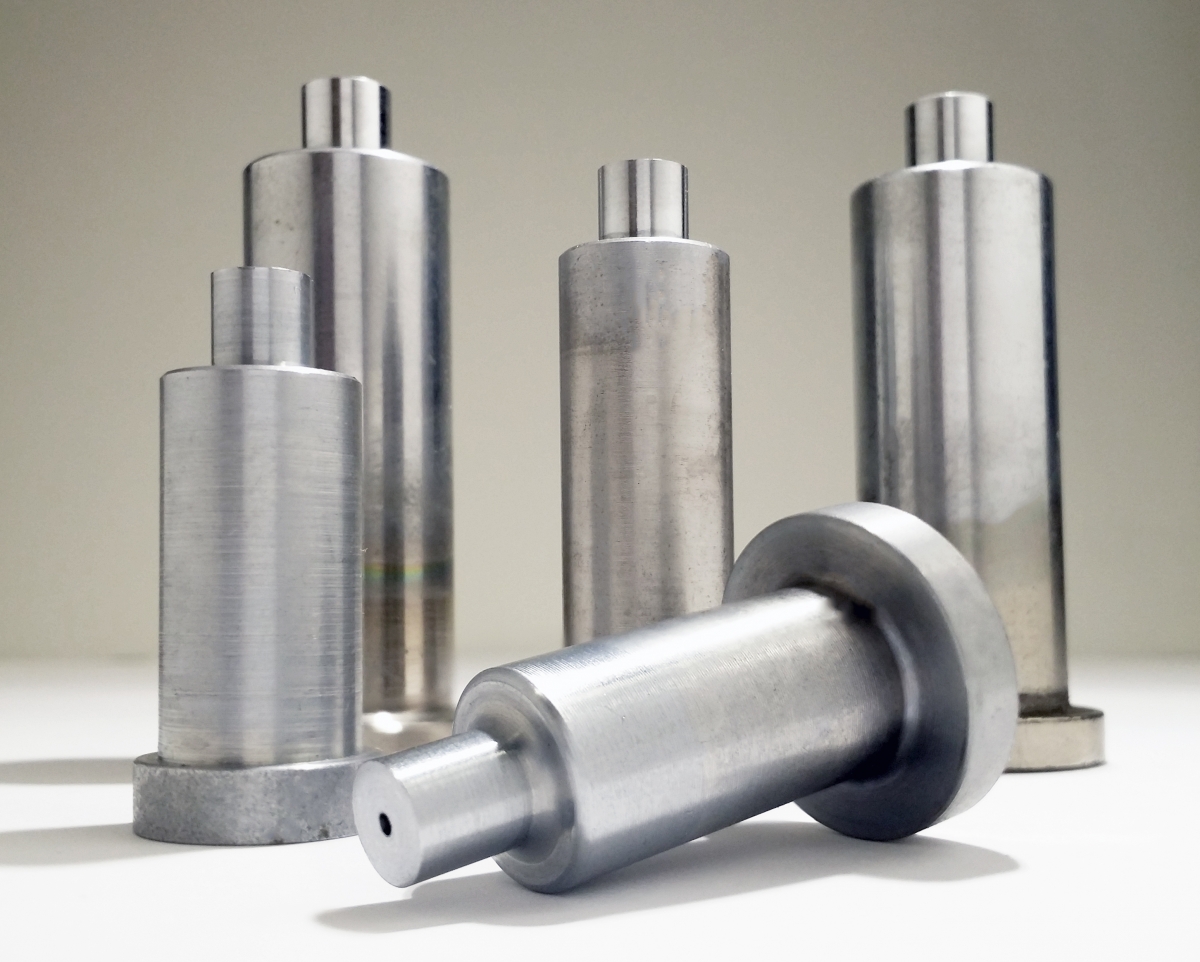

Standard type manifold nozzles used on most resins.  300 series Stainless steel construction unless noted.

Part

Order #

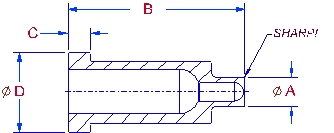

A  B C D
HM-N187A .187 1.500 .192 .687 11.00
HM-N250A .250 1.500 .192 .687 11.00
HM-N250C .250 1.500 .125 .687 11.00
HM-N260A .260 1.500 .192 .687 11.00
HM-N265A .265 1.500 1.92 .687 11.00
HM-N270A .270 1.500 1.92 .687 11.00
HM-N275A .275 1.500 1.92 .687 11.00
HM-N281A .281 1.500 1.92 .687  11.00
HM-N312A .312 1.500 1.92 .687 11.00
HM-N250D .250 1.953 .125 .687 18.00
HM-N270F .250 1.500 .192 .687 11.00
HM-N265B .265 1.953 .125 .687 18.00
HM-N265F .265 1.500 .192 .850 11.00
HM-N281B .281 1.953 .125 .687 18.00
HM-N283A .283 1.953 .125 .687 18.00
HM-N312B* .312 4.855 .250 1.000 95.00

Min order of 25 pcs

*416 SS
